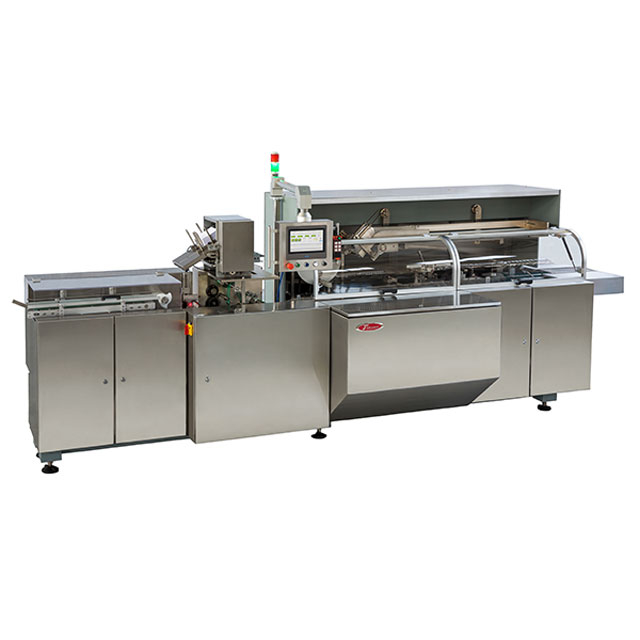

SMZ-1502 automatic continuous packing machine

Availability:
Quantity:

model: SMZ-1502

Scope of application: Suitable for bottles, blister, pallets, various drugs such as ointments, bags, etc.

Technical specifications

Power supply: AC380V 50 / 60Hz 3ph

Total power: 4.0kW

Dimensions: 4450 × 1460 × 1700mm (L × W × H)

Weight: 2800kg

Air consumption: 5m3 / h (pressure 0.5-0.8MPa)

Production capacity: 100-250 box / division

Maximum carton size: 200 × 85 × 70mm (L × W × H)

Minimum tray size: 65 × 25 × 15mm (L × W × H)

Maximum instruction size: 220 × 180mm

Maximum Size: 100 × 100mm

Applicable tray: 250-350g / m2 standard cardboard

Treasury paper requirements: 50g-70g / m2 (generally 60g / m2 is best)
