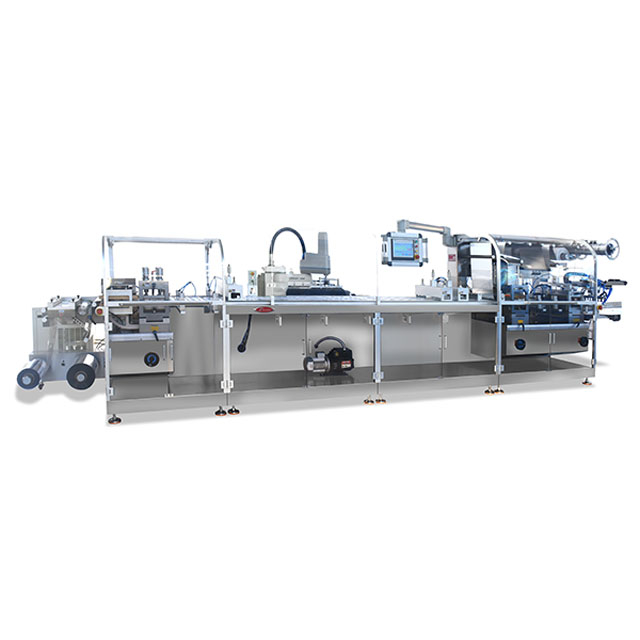

SML-1208 balcony blister pack

Availability:
Quantity:

model: SML-1208

Scope of application: Suitable for Willow Bottle 1-10ml, ampoule 1-20ml, oral liquid 10-20ml molded coated film packaging, with a machine hand feeder, which is a tramped film integrated in a wire system.

Technical specifications

Power supply: AC380V 50 / 60Hz 3ph

Total power: 6.2KW

Shape size: 7500 × 1100 × 2000mm (L × W × H) (the device size varies depending on the product)

Machine weight: 5500kg

Speed: 0-30 times / min

Molding range: Standard L: 350 × W: 110 × H: 30 (mm)

Size range: standard 20-120mm, custom 60-160mm

Applicable materials: non-toxic PVC diaphragm 0.15-0.5mm × 360mm

Gloor PTP aluminum foil 0.02-0.035mm × 360mm

Paper tube aperture: 76mm

Compressed air:> 0.2m3 (self)

Pressure: 0.6-0.8MPa

Mold cooling: Self-circulation water consumption water consumption 60L / h or chiller
